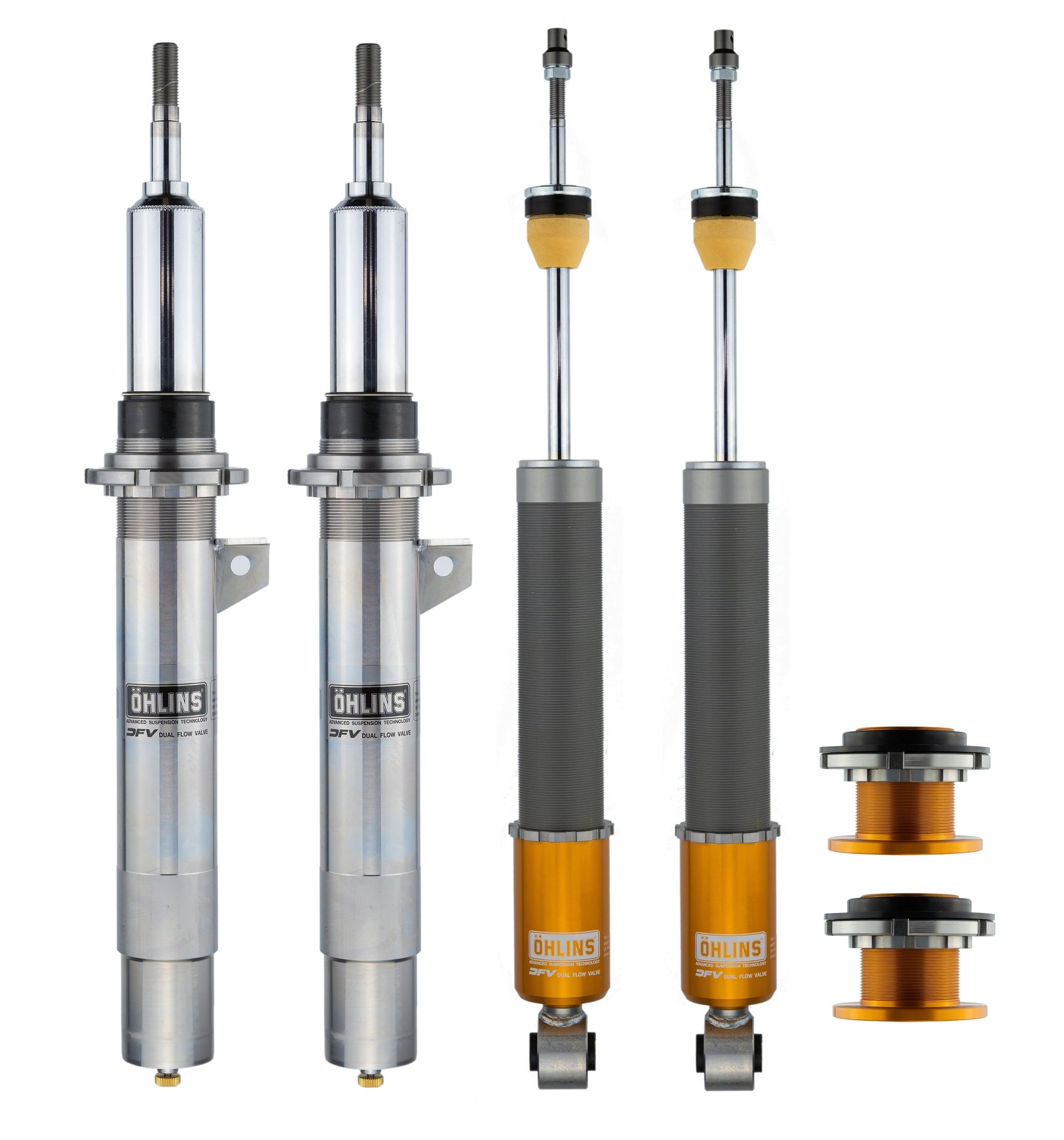

Öhlins Club Race DFV Coilover Dampers – BMW 3 Series/M3 (E46) | 1999–2006

Name: Öhlins Club Race DFV Coilover Dampers – BMW 3 Series/M3 (E46) | 1999–2006
Brand: Öhlins
SKU: U40033-01
Price: 2900.00 USD
Availability: InStock

Öhlins

SKU: U40033-01

Price

$2,900⁰⁰

Save $-2,900

/

Quantity

In stock, ready to ship
Backordered, shipping soon

Free Ground Shipping Over $299+

Global Shipping Available

Secure payments

The Öhlins Road & Track Club Race DFV damper set brings motorsport-derived damping technology to this platform. This is a damper-only kit, engineered for dedicated track and off-road use.

Overview

Öhlins Dual Flow Valve (DFV) technology for consistent, predictable damping across the full range of motion
Monotube damper construction for superior heat dissipation and fade resistance
20-position external compression and rebound adjustment
Supplied as a damper-only set — springs are not included and must be selected separately based on vehicle weight, setup, and intended use

Application

BMW 3 Series, M3 (E46)

Track/Off-Road Use Only — this is not a street system. Specialist spring selection and setup knowledge is required; consult a qualified suspension specialist before fitment.

Specifications

Spec	Value
Front Spring Rate Range	100–140 N/mm
Min. Front Spring Stroke (After Preload)	93 mm
Approximate Front Wheel Droop	38 mm
Rear Spring Rate Range	140–180 N/mm
Min. Rear Spring Stroke (After Preload)	Divorced
Approximate Rear Wheel Droop	50 mm
Front Spring Hardware	65mm (2.5")
Rear Spring Hardware	65mm (2.5")
Helper Spring	Required
Top Mounts	Top mounts available
Cancellation Kit (Available Separately)	N/A
Country of Origin	Japan

Download installation guide (PDF)
