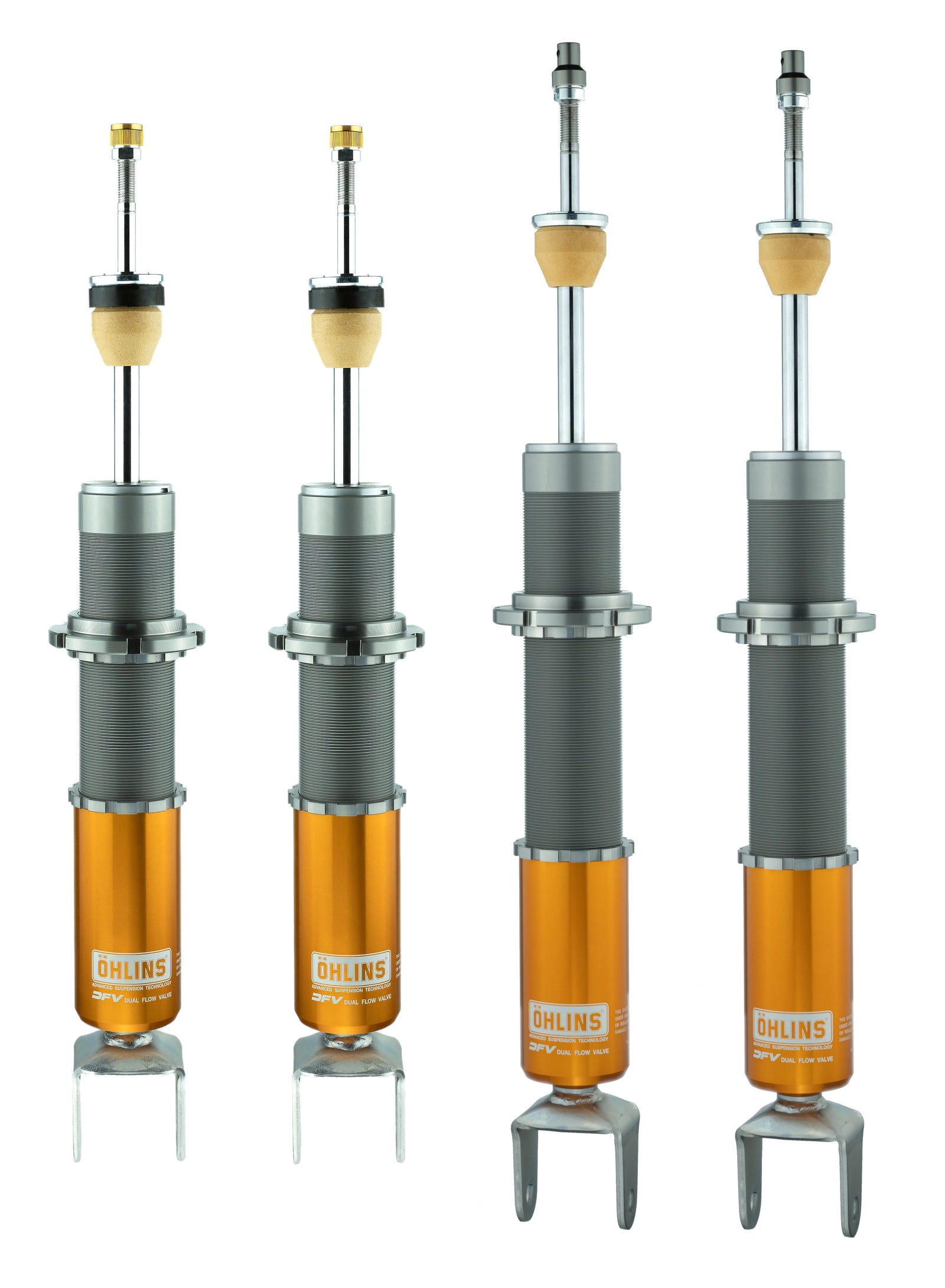

Öhlins Club Race DFV Coilover Dampers – Mazda Miata (ND) | 2016+

Name: Öhlins Club Race DFV Coilover Dampers – Mazda Miata (ND) | 2016+
Brand: Öhlins
SKU: U40032-01
Price: 2500.00 USD
Availability: InStock

Öhlins

SKU: U40032-01

Price

$2,500⁰⁰

Save $-2,500

/

Quantity

In stock, ready to ship
Backordered, shipping soon

Free Ground Shipping Over $299+

Global Shipping Available

Secure payments

The Öhlins Road & Track Club Race DFV damper set brings motorsport-derived damping technology to this platform. This is a damper-only kit, engineered for dedicated track and off-road use.

Overview

Öhlins Dual Flow Valve (DFV) technology for consistent, predictable damping across the full range of motion
Monotube damper construction for superior heat dissipation and fade resistance
20-position external compression and rebound adjustment
Supplied as a damper-only set — springs are not included and must be selected separately based on vehicle weight, setup, and intended use

Application

Mazda Miata (ND)

Track/Off-Road Use Only — this is not a street system. Specialist spring selection and setup knowledge is required; consult a qualified suspension specialist before fitment.

Specifications

Spec	Value
Front Spring Rate Range	80–120 N/mm
Min. Front Spring Stroke (After Preload)	91 mm
Approximate Front Wheel Droop	51 mm
Rear Spring Rate Range	60–90 N/mm
Min. Rear Spring Stroke (After Preload)	111 mm
Approximate Rear Wheel Droop	56 mm
Front Spring Hardware	65mm (2.5")
Rear Spring Hardware	65mm (2.5")
Helper Spring	Required
Cancellation Kit (Available Separately)	N/A
Country of Origin	Japan

Download installation guide (PDF)
